Also called blocking or adjustable gas springs,locking gas struts.Lockable gas springs are commonly used in applications requiring the ability to lock out the stroke in a desired position without the need for external locking mechanisms. This is achieved by a unique piston design that separates the gas and oil chambers of the spring.Our locking gas springs make it possible to variably lock them in any stroke position, whether elastically ("spring-loaded") or rigidly. Our special functions offer particular advantages when it comes to convenience and operation.Typical applications are variable adjustment of tables, chair backrests, gym machinery, control panels and desks, as well as beds and patient equipment. We have a large selection of gas springs as well as custom gas springs.

Main features & benefits of our gas spring

· 25,000 to 50,000 life cycle rating
· Up to 144 hours’ salt spray testing
· Usable within -30-80° C in the temperature range
· Choose environmentally friendly materials
· Force Range: 50 – 1000N
· Stroke Range: 20 – 500mm Variable positioning with elastic or rigid locking
· Optimized weight compensation during lifting, lowering, opening, and closing
· Lock into position in the extended or compressed position
· Installation can be orientation-specific or in any orientation, depending on type
· Flat spring characteristic curve for low force increase, even with high forces or large strokes
· Linear, progressive, or depressive spring characteristic curve
· Mechanical actuation systems, also with an extra small actuation range for easiest operation
· Broad selection of sizes, force variants, and end fittings
· Compact design for installation in the smallest of spaces
· Maintenance-free, even at high loads, with long service life
· High-quality products manufactured in compliance with the international standard

Will it work for my requirements?

We understand that each application is unique and requires a tailored solution. Our team of experienced engineers will work with you to understand your specific needs and provide the best solution for your requirements. We take pride in our customer service and have design engineers available to work with you to ensure that our gas struts meet your exact requirements.

Our bespoke service allows for customization of gas struts to match the requirements of your application. This includes options such as custom tube and rod lengths, force settings, damping zones, various end fittings and so on. We also offer a variety of materials, including steel or 304/316 stainless steel construction,

In summary, our bespoke service provides custom gas spring solutions that are tailored to your specific requirements. Fill out the Contact Us form on our website to discuss your specific needs and requirements today.

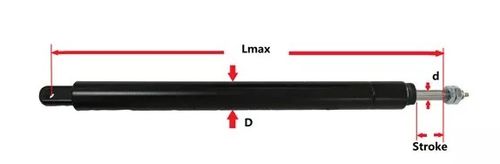

Specification

Types of Locking Gas Springs

Flexible Locking Gas Spring

(Elastic) Flexible Locking gas springs incorporate a mechanism enabling the user to “lock” the rod at any point in its travel while allowing the rod to flex when the load exceeds specified limits. When the valve is open, the gas spring works as a standard gas spring. If the valve is closed, it prevents the gas flowing between the two sides of the piston. As a result, after a minimal piston displacement, a force-balance occurs on both sides of the piston, so the piston will be locked in the given position. Since there is a compressible gas on both sides of the piston, locking is flexible.

Rigid in Compression Locking Gas Spring

Our Rigid in Compression Locking gas springs incorporate a mechanism enabling the user to “lock” the rod at any point in its travel. As the name suggests, these springs are fully rigid when subjected to compressive forces when locked, while allowing the rod to flex when subjected to tensile loads which exceed specified limits. These limits are controlled by parameters such as the rod size, the body size and the P1 force.

Rigid in Extension Locking Gas Spring

As the name implies this type of lockable gas spring will be rigid in the locked position when force is applied in the extension direction. In compression there will be some small movement of the shaft based on the amount of load applied. When the load is removed the shaft will return to the position at which it was locked. The gas spring can be mounted vertically or horizontally.
